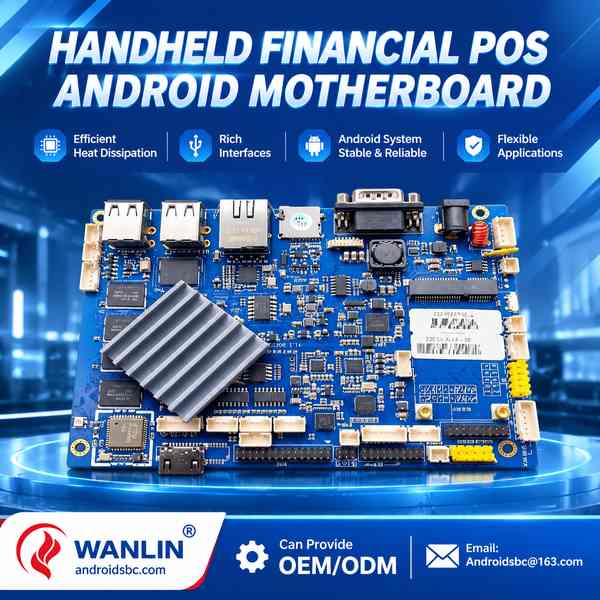

RK3566 convenience store handheld POS board Pro for South Africa Buyers - Wholesale Retail and Super

September 29, 2026 supply note: Wanlin Group (Shenzhen, China) opened the RK3566-RS130 to South Africa POS brand owners, acquiring banks and private-label programme teams, Rockchip RK3566 quad-core SoC, 4GB LPDDR4 + 128GB eMMC, 8-inch portrait touch, Android 12.0 AOSP build for payment-only devices, Dual-band WiFi with Bluetooth 5.4, inside its 2026 Retail and Supermarket Handheld POS Boards export program: 4GB LPDDR4 + 128GB eMMC, with in-store handheld terminals that scan barcodes, check shelf price, take mixed card and wallet payment and print the receipt at the aisle, the counter or the kerbside collection point of a retail store, built for the way South Africa merchants and field teams actually work. Wanlin Group as the handheld POS board supplier, exporter and original manufacturer now serves local partners, regional exclusive distributors and strategic OEM clients in more than 60 destination markets, and this export program is open to South Africa buyers ordering at factory-direct terms.

Core parameters: Rockchip RK3566 quad-core SoC, 4x Cortex-A55 with an integrated NPU. CPU 4x ARM Cortex-A55 up to 1.8GHz, 64-bit architecture. GPU ARM Mali-G52 2EE GPU, OpenGL ES 3.2 / Vulkan 1.1. Render and security path Mali-G52 2EE render path with the on-chip NPU handling QR decoding assist and lightweight face detection. Video decode Hardware decode up to 4K@60fps across H.265, VP9 and H.264, with 1080P@30fps encode for audit capture. Camera input MIPI CSI camera input for barcode imagers, face payment cameras and document capture. Memory and storage 4GB LPDDR4 + 128GB eMMC. Operating system Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware. Display and touch 8-inch 1280x800 panel with portrait-mode UI and anti-glare bonding. Audio and signalling Speaker output with microphone input, voice prompt playback and a scan beep channel. Interfaces and I/O 1x MIPI DSI display with capacitive touch, 1x MIPI CSI camera, 1x USB Type-C with OTG, 1x USB Host, 1x RS232 or TTL UART, 1x printer head and cutter control header, 1x scan engine UART, GPIO, I2C, SPI, PWM and ADC expansion. Networking Dual-band WiFi with Bluetooth 5.4, GPS and an eSIM option. Power input Single-cell Li-Polymer pack with onboard charge management, fuel-gauge reporting and fast-charge profile, pack capacity selected per shift length and printer duty. Duty profile Continuous field duty with hardware watchdog, RTC retention, scheduled power on/off and auto power on after a mains cut; a wide-temperature build is available for cold-chain and outdoor routes. PCB Compact handheld POS PCBA with onboard LPDDR and eMMC, MIPI DSI display and touch, MIPI CSI camera, printer and scan-engine headers, SIM and TF card slots and a USB Type-C service port. Certifications CE / FCC / RoHS / REACH with EMV and PCI-relevant documentation support. Wanlin's 2026 export roadmap for South Africa also covers custom memory and storage combos, printer and scan engine interface selection, contactless antenna placement, custom peripheral drivers, private-label branding and per-destination certification documentation packages.

Executive Summary - Retail and Supermarket Handheld POS Boards Export for Global B2B Buyers

Executive summary - 10 buyer-relevant points:

• Featured model RK3566-RS130, Retail Store and Supermarket Handheld POS Boards, Rockchip RK3566 quad-core SoC, 4x Cortex-A55 with an integrated NPU
• CPU 4x ARM Cortex-A55 up to 1.8GHz, 64-bit architecture
• GPU ARM Mali-G52 2EE GPU, OpenGL ES 3.2 / Vulkan 1.1
• Render and security path Mali-G52 2EE render path with the on-chip NPU handling QR decoding assist and lightweight face detection
• Video decode Hardware decode up to 4K@60fps across H.265, VP9 and H.264, with 1080P@30fps encode for audit capture
• Memory and storage 4GB LPDDR4 + 128GB eMMC
• OS Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware
• Display and touch 8-inch 1280x800 panel with portrait-mode UI and anti-glare bonding
• MOQ 100 pcs, lead time 14-20 days, FOB Shenzhen / CIF / EXW / DDP supported, 24 months warranty
• Field reference: mini-market franchise rollout - new store setup time fell from 2 days to 3 hours
• Target buyer: supermarket and convenience chain operators, retail IT integrators, cashier device brands, retail software houses and regional Android board distributors
• Contact: Email: Androidsbc@163.com | Phone: +8613261677119 | Website: https://www.androidsbc.com

For sourcing managers evaluating Retail and Supermarket Handheld POS Boards suppliers, the items below are the ones that normally decide the shortlist and hold up in later disputes. Wanlin Group operates its own 12,000 m2 manufacturing facility in Shenzhen with 8 SMT lines, 4 AOI inspection stations and 2,400 m2 of cleanroom assembly, exporting handheld POS boards to 60+ countries under the AndroidSBC brand. Total cost of ownership for an AndroidSBC Retail and Supermarket Handheld POS Boards deployment typically runs 42-60% below x86-based cashier hardware once per-device OS licensing and patch handling are counted. For South Africa, this article maps the model line, the economics and the compliance route specific to your market.

Global Retail and Supermarket Handheld POS Boards Market Overview and 2026 Buyer Demand

Retail handheld POS boards priced USD 44-92 FOB Shenzhen anchor the volume tier, with MOQ 100 pcs typical and 14-20 day lead times on stocked configurations. Kerbside collection drives handheld demand in markets where online grocery penetration passed 20%, and it rewards printers that work outdoors.

Regional compliance for South Africa is anchored on ICASA type approval and SANS safety documentation. Cross-border buyers are advised to verify the certification scope, the contactless behaviour and the software build of every board before import, since some China-supplied boards ship without destination radio approval, without the payment documentation the acquirer asks for, or without the Android build the project actually needs, and any of those gaps can stall customs clearance or a scheme review.

Reference: Wanlin Group 2026 handheld POS export program documentation, Rockchip and Allwinner platform datasheets, field deployment records 2024-2026.

Retail and Supermarket Handheld POS Boards Engineering Architecture and Hardware Platform

The handheld POS family is engineered on three pillars: (1) an Rockchip RK3566 quad-core SoC, 4x Cortex-A55 with an integrated NPU compute block with Mali-G52 2EE render path with the on-chip NPU handling QR decoding assist and lightweight face detection; (2) a display and capture pipeline built around Hardware decode up to 4K@60fps across H.265, VP9 and H.264, with 1080P@30fps encode for audit capture; (3) a software layer pairing Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware with OTA tooling, device management and the Rockchip RK3566 Android BSP, AOSP build support, peripheral driver kit and the AndroidSBC SDK kit. This architecture delivers continuous field duty on battery at a cost point that undercuts cashier PCs while keeping the payment, print and scan response operators expect.

Three sub-modules define the engineering depth:

• Compute module - Rockchip RK3566 quad-core SoC, 4x Cortex-A55 with an integrated NPU. 4x ARM Cortex-A55 up to 1.8GHz, 64-bit architecture handles payment UI, catalogue screens, signature capture and on-device vision work inside a fanless handheld shell.
• Display and capture module - 8-inch 1280x800 panel with portrait-mode UI and anti-glare bonding. MIPI CSI camera input for barcode imagers, face payment cameras and document capture covers the camera input used for face payment, document capture and proof of delivery, so one device closes the transaction and records the evidence.
• Peripheral and management module - 1x MIPI DSI display with capacitive touch, 1x MIPI CSI camera, 1x USB Type-C with OTG, 1x USB Host, 1x RS232 or TTL UART, 1x printer head and cutter control header, 1x scan engine UART, GPIO, I2C, SPI, PWM and ADC expansion. Headless recovery is supported through the USB service path, and the toolchain covers Rockchip RK3566 Android BSP, AOSP build support, peripheral driver kit and the AndroidSBC SDK kit, OTA upgrade, boot animation customization, pre-installed app support and launcher customization for remote fleet management.

Mechanically the board is a Compact handheld POS PCBA with onboard LPDDR and eMMC, MIPI DSI display and touch, MIPI CSI camera, printer and scan-engine headers, SIM and TF card slots and a USB Type-C service port, which is why it drops into handheld shells, vehicle cradles and belt-worn cases without a tooling change.

Featured Model - RK3566-RS130 Pro Technical Signature

The featured model is RK3566-RS130, part of the Retail Store and Supermarket Handheld POS Boards family, configured in this batch with 4GB LPDDR4 memory and 128GB eMMC storage. FOB Shenzhen reference price is $99.50 per piece at MOQ 100 pcs, with bulk tier pricing from $85.57 to $111.44 depending on memory and storage combination, radio set, regional certification and packaging artwork. Lead time is 14-20 days from PO confirmation and 30% T/T deposit receipt, with a 24-month warranty.

The technical signature of RK3566-RS130 on this configuration is documented below. Every parameter is verified by our Shenzhen lab against the printer duty profile, the contactless read behaviour of the final enclosure and the electrical limits of IEC / UL 62368-1.

Specification	Value
soc_platform	Rockchip RK3566 quad-core SoC, 4x Cortex-A55 with an integrated NPU
cpu_core	4x ARM Cortex-A55 up to 1.8GHz, 64-bit architecture
gpu_3d	ARM Mali-G52 2EE GPU, OpenGL ES 3.2 / Vulkan 1.1
render_security_path	Mali-G52 2EE render path with the on-chip NPU handling QR decoding assist and lightweight face detection
video_decode	Hardware decode up to 4K@60fps across H.265, VP9 and H.264, with 1080P@30fps encode for audit capture
camera_input	MIPI CSI camera input for barcode imagers, face payment cameras and document capture
memory_storage	4GB LPDDR4 + 128GB eMMC
os_android	Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware
display_touch	8-inch 1280x800 panel with portrait-mode UI and anti-glare bonding
audio_signalling	Speaker output with microphone input, voice prompt playback and a scan beep channel
interfaces_io	1x MIPI DSI display with capacitive touch, 1x MIPI CSI camera, 1x USB Type-C with OTG, 1x USB Host, 1x RS232 or TTL UART, 1x printer head and cutter control header, 1x scan engine UART, GPIO, I2C, SPI, PWM and ADC expansion
networking	Dual-band WiFi with Bluetooth 5.4, GPS and an eSIM option
power_input	Single-cell Li-Polymer pack with onboard charge management, fuel-gauge reporting and fast-charge profile, pack capacity selected per shift length and printer duty
duty_profile	Continuous field duty with hardware watchdog, RTC retention, scheduled power on/off and auto power on after a mains cut; a wide-temperature build is available for cold-chain and outdoor routes
pcb_mechanics	Compact handheld POS PCBA with onboard LPDDR and eMMC, MIPI DSI display and touch, MIPI CSI camera, printer and scan-engine headers, SIM and TF card slots and a USB Type-C service port
certifications	CE / FCC / RoHS / REACH with EMV and PCI-relevant documentation support
use_case	in-store handheld terminals that scan barcodes, check shelf price, take mixed card and wallet payment and print the receipt at the aisle, the counter or the kerbside collection point of a retail store

Retail and Supermarket Handheld POS Boards Application Scenarios across Deployment Sites

Instead of restating features, the entries below report where Retail and Supermarket Handheld POS Boards already work: the site, the fleet size and the figure that moved.

Scenario 1: mini-market franchise rollout (Da Nang, Vietnam). A franchise operator equipped 1,300 mini-markets with a single handheld each, preloaded with the franchise catalogue and a price file that updates on a nightly OTA window. Measured result: new store setup time fell from 2 days to 3 hours and price file errors reported by franchisees dropped to zero.

Scenario 2: wholesale market with label printing (Kathmandu, Nepal). A wholesale market fitted 410 handhelds with label printing for weighed goods, so the weight, the price and the label come from one scan and the buyer never re-queues at a packing desk. Measured result: re-weighing disputes fell to zero and throughput per counter rose 2.1x.

Scenario 3: hypermarket peak-hour overflow lanes (Recife, Brazil). A hypermarket opened 40 overflow lanes staffed with handhelds during the Saturday peak, each unit printing on a belt printer and falling back to its own printer when the belt queue is busy. Measured result: peak-hour checkout capacity rose 38% without new counters and overtime hours per weekend fell 210.

Scenario 4: aisle-side checkout in a neighbourhood supermarket (Penang, Malaysia). A grocer put 14 handhelds into a single store so staff can scan and charge in the aisle, with price lookup running against a local copy of the shelf file that refreshes over WiFi at the start of each shift. Measured result: weekend queue time fell 52% and price-mismatch complaints dropped to zero.

Scenario 5: convenience chain with night shift stocktaking (Wroclaw, Poland). A convenience chain runs 320 handhelds on the night shift for stocktaking after the till closes, using the same barcode engine for counting and for checkout so staff carry one device. Measured result: stock count duration fell from 4 hours to 70 minutes and shrink identified per cycle rose 31%.

AndroidSBC Retail and Supermarket Handheld POS Boards Competitive Advantages for Cross-Border Buyers

The handheld POS board and the wider AndroidSBC payment device portfolio deliver eight advantages for cross-border B2B buyers sourcing from Chinese manufacturers:

1. Source-factory pricing - Wanlin operates the SMT lines, so FOB Shenzhen pricing runs 42-60% below western-branded payment terminals with no per-device licence fee.
2. Payment path coverage - QR, barcode, NFC contactless, EMV chip and magnetic stripe on one board, with secure boot, tamper inputs and key storage where the scheme asks for it.
3. Printer and scan integration - thermal printer head and cutter control plus a scan engine UART on the board, so receipt and scan do not need a second controller.
4. Radio coverage - 4G LTE with dual-SIM and eSIM options, dual-band WiFi, Bluetooth and GNSS positioning, so one board serves retail, delivery and field service channels.
5. Offline behaviour - transaction and scan queueing that posts when the signal returns, because the places where payment happens are the places where coverage fails.
6. Peripheral and service path - 1x MIPI DSI display with capacitive touch, 1x MIPI CSI camera, 1x USB Type-C with OTG, 1x USB Host, 1x RS232 or TTL UART, 1x printer head and cutter control header, 1x scan engine UART, GPIO, I2C, SPI, PWM and ADC expansion, covering printer, scanner, camera, RFID, SIM and TF, GPIO and serial expansion, plus a USB service port for field recovery.
7. Multi-OS flexibility - Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware, so GMS devices, AOSP payment builds and private-label launcher programmes run on one board.
8. Unattended reliability - hardware watchdog, RTC retention, scheduled power on and off, auto power on after a mains cut and OTA with a canary ring.

Combined, these advantages let AndroidSBC partners win retail, delivery, banking and private-label programmes, secure regional distribution rights, and serve end customers under their own brand at a landed cost 35-45% below legacy suppliers.

Retail and Supermarket Handheld POS Boards Certifications, Electrical Performance and Assembly Notes

The RK3566-RS130 carries CE / FCC / RoHS / REACH as standard scope. Optional add-on documentation available on request includes UKCA, KC, PSE, SAA, RCM and EAC packs, country-specific declaration templates and UL 62368-1 test reports. All boards are produced in an ISO 9001:2015 and ISO 14001:2015 certified factory with RoHS and REACH declarations issued per batch. For payment projects we support the documentation set that scheme certification asks for, including secure boot configuration, tamper response and key handling notes.

Electrical performance is characterised against the final enclosure: Single-cell Li-Polymer pack with onboard charge management, fuel-gauge reporting and fast-charge profile, pack capacity selected per shift length and printer duty, with the printer head supplied on its own power path and the contactless antenna tuned with the shell closed. The board is specified for Continuous field duty with hardware watchdog, RTC retention, scheduled power on/off and auto power on after a mains cut; a wide-temperature build is available for cold-chain and outdoor routes, which covers handheld shells, vehicle cradles and belt-worn cases with no fan and no vent.

Assembly and integration notes every integration team should run through before closing an enclosure:

• Budget the printer head supply as a separate power path with its own bulk capacitance, because the thermal head draws a sharp current pulse on every line of a receipt and will brown out the logic rail if it shares it
• Keep the MIPI DSI flex inside the bend radius drawn for the connector and strain-relieve it at both ends, since a handheld survives drops mainly by not loading the display connector
• Bond the battery NTC thermistor to the cell and route its sense wires away from the printer and motor currents, because a misread cell temperature derates charging in summer and overcharges in cold rooms
• Place the contactless antenna away from the battery, the shielding can and any metal bracket, then tune it with the final enclosure closed, since detuning shows up as read failures at the till rather than in the lab
• Configure secure boot and the tamper detection inputs before the security review, since payment schemes ask for the keys and the tamper response during certification rather than after
• Support the PCBA on all screw bosses and keep it flat in the shell, because a flexed board cracks BGA joints under drop testing and the failure appears weeks later in the field
• Seal the USB Type-C opening and give it ESD protection on the data lines, since the service port is the main entry point for both water and static in handheld duty

Cross-border buyers should note that handheld payment compliance combines product marking, radio certification, safety evaluation and the scheme documentation the acquirer asks for. For South Africa specifically, importers should confirm ICASA type approval and SANS safety documentation before shipment. Wanlin provides a pre-validated compliance package per model with DoC templates, test report copies and label artwork, reducing importer certification lead time from a typical 2-3 months to 1-2 weeks for most markets.

Retail and Supermarket Handheld POS Boards Economics, MOQ, Lead Time and Logistics Math

For a first-time buyer ordering 1,000 pieces of the RK3566-RS130, the economics stack is:

Cost Layer	USD per piece	USD for 1000 pcs
FOB Shenzhen factory price	$99.50	$99500.00
+ Sea freight FCL 40HQ (estimated)	$2.10	$2100.00
CIF destination port	$101.60	$101600.00
+ Customs duty 3%-10% (region dependent)	$0.64	$637.10
+ Local delivery + warehousing	$3.80	$3800.00
DDP landed cost	$106.04	$106040.00

Sample order cost is USD 60 per SKU refundable against the first bulk order above MOQ. 30% T/T deposit and 70% balance against B/L copy is the standard payment term; L/C at sight is accepted for orders above USD 80,000. Production lead time is 14-20 days, warranty is 24 months, and free DOA replacement applies within 60 days of receipt.

Retail and Supermarket Handheld POS Boards FAQ - OEM, ODM, MOQ, Lead Time, Partnership

Below are eight frequently asked questions from cross-border buyers sourcing handheld POS boards from China. Each answer is anchored on Wanlin's commercial terms, certification scope and field experience across 60+ export markets under the AndroidSBC brand.

What is the difference between OEM and ODM for Retail and Supermarket Handheld POS Boards?

Answer: OEM (Original Equipment Manufacturer) means Wanlin Group builds the board, the handheld terminal or the finished payment device under your brand with your PCB silk-screen, logo, packaging and SKU. ODM (Original Design Manufacturer) means we redesign the carrier board, memory and storage combination, radio set, printer and scan engine interfaces, firmware or enclosure around your project. Both run from the same Shenzhen factory and the same firmware team: OEM lead time is 14-20 days and ODM 25-40 days including pre-compliance checks. Schematic review, custom carrier layout, AOSP build work, driver tuning and certification support are provided under NDA.

Which handheld POS board should I source for my application?

Answer: Eight selection rules for cross-border buyers:

• (1) Mobile payment and handheld cashier: HP-MP110 / HP-MP130 class with 4G, QR and contactless payment and an on-board receipt printer path.
• (2) Retail and supermarket aisle checkout: HP-RS120 / HP-RS140 with a scan engine interface, a local price file and label printing.
• (3) Restaurant, hotel and hospitality: HP-RH120 / HP-RH140 with bill splitting, voice prompt of the amount and wet-finger touch tuning.
• (4) Delivery, logistics and warehouse: HP-DL130 / HP-DL150 with offline scan queueing, proof of delivery capture and waybill printing.
• (5) Biometric and contactless payment: HP-PY150 / HP-PY170 with face or fingerprint authorisation, secure boot, tamper inputs and key storage.
• (6) Banking, insurance and field service: HP-BF130 / HP-BF150 with identity capture, printed acknowledgement and offline queueing.
• (7) Ticketing, parking and transport: HP-TT120 / HP-TT140 with offline validation, fast print and a battery sized to a full shift.
• (8) Private-label programmes and redesign work: HP-OD170 / HP-OD180 with carrier redesign, BSP porting, signed firmware, per-unit provisioning and a last-time-buy window.

What software support comes with the boards?

Answer: Every board ships with the Android image (Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware), BSP source access, driver documentation, SDK material and OTA tooling. The build supports GMS where the destination market and product category qualify; for payment-only projects that do not need Google services, the same hardware runs a full AOSP build, which also lowers unit cost. Kiosk-mode launchers, auto-start app configuration, custom boot animation, scheduled behaviour and remote device management agents are part of the standard integration work. The media stack covers the video, audio and image formats listed in the platform section, and the payment stack covers QR, barcode, NFC contactless, EMV chip and magnetic stripe paths with hardware backed key storage where the project requires it.

How do Wanlin handheld POS boards compare with branded terminals and x86 cashier boxes?

Answer: Because Wanlin builds the boards rather than reselling them, landed cost typically runs 42-60% below western-branded payment terminals and 25-38% below a resold retail device on equivalent radio, display and printer support. On the engineering side, this configuration brings Rockchip RK3566 quad-core SoC, 4x Cortex-A55 with an integrated NPU, 4x ARM Cortex-A55 up to 1.8GHz, 64-bit architecture and ARM Mali-G52 2EE GPU, OpenGL ES 3.2 / Vulkan 1.1, with the BSP covering Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware. Licensing cost also disappears: cashier PCs carry per-device OS licence fees and patch cycles, while the Android build carries none. The compact handheld PCBA also drops into enclosures that were designed around a larger terminal, which usually removes a docking station and a second power supply from the kit.

Can the board drive the display, the printer and the full peripheral set?

Answer: Yes. 8-inch 1280x800 panel with portrait-mode UI and anti-glare bonding. The peripheral stack covers thermal receipt printers with cutter control, 1D and 2D scan engines over UART, NFC and contactless readers, magnetic stripe and IC card readers, fingerprint modules, face cameras over MIPI CSI, RFID readers, SIM and TF card slots, GPIO and I2C or SPI expansion, plus a USB service path for field recovery. Audio covers speaker output, voice prompt playback, microphone capture and a vibration motor driver. Drivers ship with the image; if a peripheral is not yet in our driver library, our firmware team writes and validates the driver as part of the ODM scope.

What are the MOQ, lead time, trade terms, sample policy and warranty?

Answer: MOQ is 100 pcs per model. Lead time is 14-20 days for standard configurations and 25-40 days for ODM customization. Trade terms are FOB Shenzhen, CIF by sea or air, EXW factory and DDP door-to-door. Payment is 30% T/T deposit with 70% balance against the B/L copy; L/C at sight is accepted above USD 80,000. Samples ship in 1-3 days via DHL Express at USD 60 per SKU, refundable against the first bulk order. Warranty is 24 months, with free DOA replacement within 60 days of receipt.

Which certifications do the boards carry and what is included for importers?

Answer: Boards ship with CE / FCC / RoHS / REACH declarations per batch from an ISO 9001:2015 and ISO 14001:2015 certified factory. UKCA, KC, PSE, SAA, RCM, EAC and UL 62368-1 report documentation is available on request, and ICASA type approval and SANS safety documentation. For payment projects we also support the documentation set that scheme certification asks for, including secure boot configuration, tamper response description and key handling notes. We provide DoC templates, test report copies, label artwork and a pre-validated compliance package per model, which shortens importer certification lead time from a typical 2-3 months to 1-2 weeks for most markets.

What customization and partnership options does Wanlin offer?

Answer: Customization scope:

1. (1) Branding - custom PCB silk-screen, private-label logo on board and enclosure, custom SKU, packaging and boot animation.
2. (2) Firmware - custom launcher, kiosk lock-down, pre-installed apps, multilingual UI packs, custom boot logo and a signed OTA channel.
3. (3) Hardware - carrier board redesign, memory and storage combinations, radio set selection, printer and scan engine interface placement, contactless antenna routing, SIM and TF slot layout and battery pack matching.
4. (4) Software - AOSP build service, BSP porting, peripheral driver development, SDK modules, remote device management agent integration and API work against your own POS application.
5. (5) Delivery - DDP shipping, overseas-warehouse labelling, per-batch serial and key provisioning.

Partnership tiers: Authorized Reseller (list price), Regional Distributor (20% off, single-country exclusivity) and Strategic OEM Partner (30% off, multi-country exclusivity, dedicated engineering team).

Wanlin Global Partner Stories - Real Project References

The references below come from anonymized 2024-2026 projects across 60+ export markets; cities and figures are real, buyer names are withheld.

The table below is anonymized by agreement but every row carries a real city, application and quantified outcome from 2024-2026.

City	Application	Outcome
Accra, Ghana	retail rollout with radio filing support	a retail group needed regional radio filings for a multi-city rollout; Wanlin coordinated the filings and delivered pre-validated test copies.
Yangon, Myanmar	shipments cleared per batch	an importer requires per-shipment conformity certificates; the factory prepares the file with every batch so customs release clears within 48 hours.
Zaragoza, Spain	franchise chain standardising on one board	a franchise group runs one board across 220 stores with Spanish and Catalan defaults and a locked launcher that hides everything except checkout and stock.
Riga, Latvia	winter route build	a Baltic distributor specified a low-temperature startup profile and glove-mode touch tuning for staff working loading bays and cold rooms.

Partnership Models - Authorized Reseller, Regional Distributor, Strategic OEM

Wanlin offers three partnership tiers for cross-border buyers of Retail and Supermarket Handheld POS Boards:

• Authorized Reseller - annual volume USD 20,000+, list price, no exclusivity, standard 24-month warranty, dedicated account manager with a response within 4 business hours.
• Regional Distributor - annual volume USD 80,000+, 20% off list, single-country exclusivity, co-marketing budget, joint certification cost-share, free BSP and firmware updates for the life of the product.
• Strategic OEM Partner - annual volume USD 250,000+, 30% off list, multi-country exclusivity, dedicated engineering team, joint roadmap, 18-month price lock and one joint trade-show booth per year at GITEX Global, Money20/20, Canton Fair or the Hong Kong Electronics Fair in Hong Kong, China on a cost-share basis.

All partners receive free certification documentation and test report copies, custom Android image support, free DOA replacement within 60 days, per-batch serial and key provisioning, and a sample programme with USD 60 per SKU refundable against the first bulk order above MOQ.

Conclusion - How to Start Your Retail and Supermarket Handheld POS Boards Sourcing Today

Wanlin Group's 2026 handheld POS export program is open to B2B buyers, regional distributors, cross-border traders and OEM/ODM partners in South Africa and 60+ destination markets. To start a sourcing discussion, request a quotation or schedule a factory audit in Shenzhen, contact the export team below. Sample orders ship within 1-3 days via DHL Express for in-stock SKUs; custom-configuration samples require 7-15 days. Standard lead time for bulk OEM orders is 14-20 days, and Strategic OEM Partner applications are reviewed quarterly.

We invite South Africa buyers, export traders and trading companies to build long-term cooperation with Wanlin Group as your China-based OEM/ODM partner, regional exclusive distributor or strategic global supplier under the AndroidSBC brand. Wanlin is the manufacturer behind the handheld POS board line, the SMT lines and aging rooms behind every batch, and this export program. Let's build the Retail and Supermarket Handheld POS Boards supply chain together.

---

Model: RK3566-RS130
Platform: Rockchip RK3566 quad-core SoC, 4x Cortex-A55 with an integrated NPU
CPU: 4x ARM Cortex-A55 up to 1.8GHz, 64-bit architecture
GPU: ARM Mali-G52 2EE GPU, OpenGL ES 3.2 / Vulkan 1.1
Render / security: Mali-G52 2EE render path with the on-chip NPU handling QR decoding assist and lightweight face detection
Video: Hardware decode up to 4K@60fps across H.265, VP9 and H.264, with 1080P@30fps encode for audit capture
Camera input: MIPI CSI camera input for barcode imagers, face payment cameras and document capture
Memory: 4GB LPDDR4
Storage: 128GB eMMC
OS: Android 12.0 AOSP build for payment-only devices, with OTA upgrade and signed firmware
Display and touch: 8-inch 1280x800 panel with portrait-mode UI and anti-glare bonding
Audio: Speaker output with microphone input, voice prompt playback and a scan beep channel
Network: Dual-band WiFi with Bluetooth 5.4, GPS and an eSIM option
Interfaces: 1x MIPI DSI display with capacitive touch, 1x MIPI CSI camera, 1x USB Type-C with OTG, 1x USB Host, 1x RS232 or TTL UART, 1x printer head and cutter control header, 1x scan engine UART, GPIO, I2C, SPI, PWM and ADC expansion
Power: Single-cell Li-Polymer pack with onboard charge management, fuel-gauge reporting and fast-charge profile, pack capacity selected per shift length and printer duty
Field duty: Continuous field duty with hardware watchdog, RTC retention, scheduled power on/off and auto power on after a mains cut; a wide-temperature build is available for cold-chain and outdoor routes
PCB: Compact handheld POS PCBA with onboard LPDDR and eMMC, MIPI DSI display and touch, MIPI CSI camera, printer and scan-engine headers, SIM and TF card slots and a USB Type-C service port
Cert: CE / FCC / RoHS / REACH with EMV and PCI-relevant documentation support
MOQ / Lead / Warranty: 100 pcs / 14-20 days / 24 months
FOB Shenzhen reference price: $99.50 per piece at MOQ 100 pcs
Region: South Africa
Contact: Email: Androidsbc@163.com | Phone: +8613261677119 | Website: https://www.androidsbc.com

• Wanlin Group, Building B, Building 1, Beisida Medical Device Building, 28 Nantong Avenue, Baolong Community, Baolong Sub-district, Longgang District, Shenzhen, Guangdong, China
• Manufacturer: Wanlin Group / Brand: AndroidSBC / Site: www.androidsbc.com
• Export service: Email: Androidsbc@163.com | Phone: +8613261677119 | Website: https://www.androidsbc.com
• Form factor: Retail Store and Supermarket Handheld POS Boards / Platform: Rockchip RK3566 quad-core SoC / PCB: Compact handheld POS PCBA with onboard LPDDR and eMMC, MIPI DSI display and touch, MIPI CSI camera, printer and scan-engine headers, SIM and TF card slots and a USB Type-C service port
• Country compliance for South Africa: ICASA type approval and SANS safety documentation
